Overview

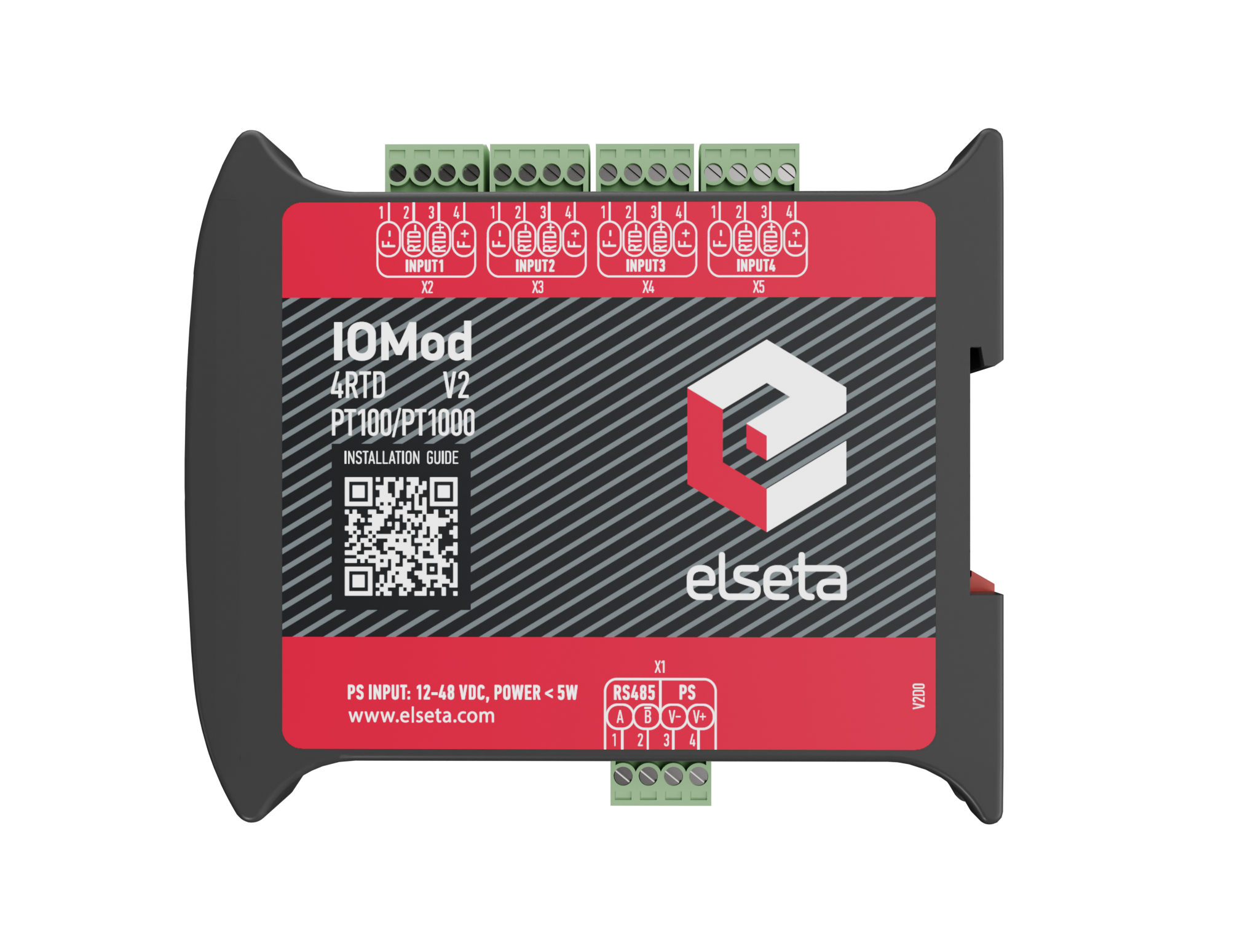

IOMod 4RTD is a stand-alone Modbus RTU, IEC 60870-5-101, and IEC60870-5-103 temperature sensor device. Designed to measure indoor thermal statistics over a wide temperature range with high accuracy and repeatability even after frequent heating and cooling cycles. Equipped with 4 temperature measuring channels to enable temperature reading with default configuration.
IOMod 4RTD is an ideal solution for such applications as data acquisition, observation, process monitoring, testing, and remote measurement where high precision over a wide temperature range is needed. Further possible applications include plastics processing, microelectronics, textile processing, as well as numerous other.
IOMod 4RTD is Modbus RTU, IEC 60870-5-101, or IEC60870-5-103 protocol compatible and can be connected in parallel with other equipment in a multi-drop installation scheme as in any SCADA system.
When using IOMod 4RTD with WCC Lite gateway, it is possible to monitor temperature (using 4 different sensors) over Ethernet LAN’s or 3G/4G(LTE)/GSM/GPRS networks. It is a powerful solution for remote monitoring and control, alarm management, and data logging of I/O’s on CloudIndustries.eu cloud platform.
Features
- Temperature measurement of 0.5°C accuracy for all operating conditions
- Temperature sensing range: from -200 to 800 °C using platinum RTD sensors
- Modbus, IEC60870-5-103, IEC60870-5-101 communication over RS485 physical layer
- Selectable PT100 or PT1000 temperature RTD sensor and connection type (2, 3 or 4 wires) for each channel
- Configuration over USB console
- Drag and Drop firmware upgrade over USB mass storage
- LED indications for power, USB connection, sensor and temperature fault conditions for all channels
- Easy connection with WCC Lite gateway and CloudIndustries.eu platform
System
- Analog inputs: 4 RTD (PT100 / PT1000)
- PC USB connection: Mini USB
- Input connectors: Screw terminal plug connector
Software
- Configuration: Over USB console
- Firmware upgrade: Over USB mass storage
Communication
- Communication standard: RS485
- Communication protocol: Modbus RTU, IEC 60870-5-101 and IEC 60870-5-103
- Speed: 600 – 115200 baud
Electrical Characteristics
- Termination resistor: Software selectable, 120Ω
- Power supply: 9-33VDC (full range)
- Current consumption: 40mA @ 12VDC, 20mA @ 24VDC
Mechanical Characteristics
- Operating temperature: -40 ÷ +85 °C
- Humidity: 5-95% RH (non-condensing)
- Casing: IP20, blend PC/ABS self-extinguishing, black
- Dimensions: 119 (H) x 17.5 (W) x 101 (L), mm
- Mounting: DIN rail
- Warranty: 2 years
Specifications
| Device data | |
| Article number | IOMOD-4RTD |
| Product Description | 4 temperature sensor input module |
| Configuration software | IOMOD Utility, Serial console (putty)* |
| Warranty | 2 years |
| Measurement values and functions | |
| Analog inputs | 4 RTD (PT100 / PT1000) |
| Input supports sensors | PT100 and PT1000 temperature RTD sensor |
| Input connection | 2, 3 or 4 wires connection |
| Temperature measurement range | -200 to 800 °C using platinum RTD sensors |
| Accuracy | 0.5°C accuracy for all operating conditions |
| Interface and communication | |
| RS485 interface | ANSI/TIA/EIA-485-A-1998 |
| Communication protocols | – Modbus RTU Slave; – IEC 60870-5-101 Slave; – IEC 60870-5-103 Slave. |
| Baudrate | 600 – 115200 |
| Parity | None, Even, Odd |
| Terminating resistors | 120 Ohm (configurable) |
| USB interface | |
| Type | Mini USB |
| Use | Configuration/Firmware upgrade |
| Power supply | |
| Auxiliary power supply | 9-33VDC (full range) |
| Power consumption | 40mA @ 12VDC, 20mA @ 24 VDC |
| Insulation voltage | 3 kV |
| Operating conditions | |
| Operating temperature | -40°C … 85°C |
| Storage temperature | -40°C … 85°C |
| Relative humidity | max. 95 % (non condensing) |
| Protection class | IP20 |
| Dimensions and installation instructions | |
| Case height x width x depth | 119 x 17.5 x 101 mm |
| Installation type | DIN Rail mounting |
Documentation
- Online documentation about IOMOD modules
- Brochures and Manuals to download
- Firmware and tools
- ISO downloads
Order
IOMOD-4RTD – 4xChannel PT100,PT1000 input module with IEC 60870-5-103, IEC 60870-5-101, or Modbus RTU Slave protocol
On request*:
* – IOMOD devices 8DI8DO, 8AI, 4RTD, 16DI, 8DI4RO, HT with firmware versions v1.x supports only 1 protocol. To change protocol is required to change firmware. All types of firmware are accessible to all customers without any additional payment.
