Overview

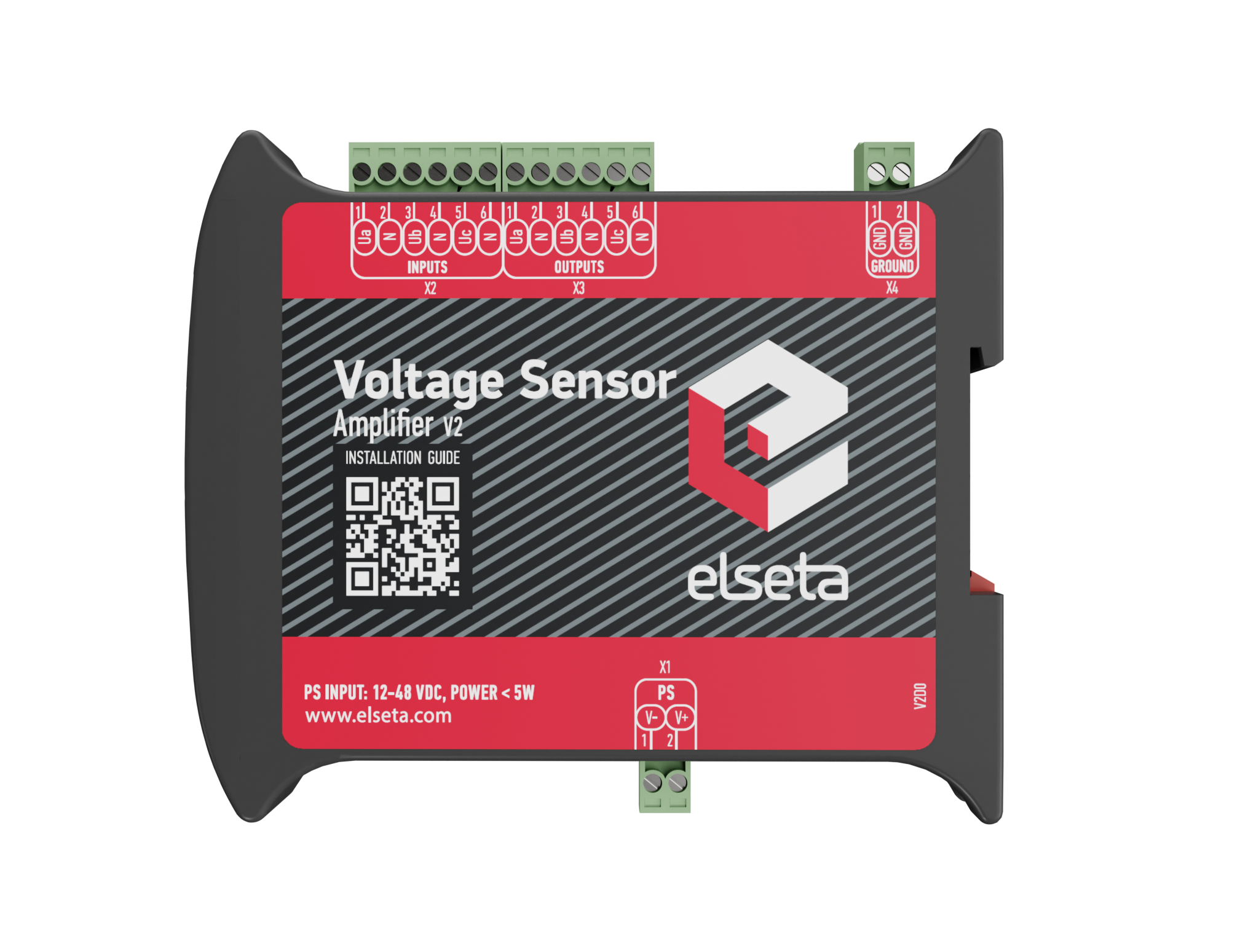

The Voltage Sensor Amplifier is designed to allow a single voltage sensor (per phase) to interface with multiple IOMOD Meter and IOMOD FPI devices, eliminating the need for amplitude and phase correction.
Enhance your engineering applications with our advanced three-channel Voltage Sensor Amplifier. Engineered for high precision, it provides a stable impedance load to maintain the accuracy of voltage sensors. With a gain factor of 1, it ensures signal fidelity without distortion. Facilitate the simultaneous connection of multiple metering devices to a single voltage sensor, eliminating the need for complex amplitude factor calculations and tuning. Optimize your measurements with this robust and technically sophisticated solution,
This device is engineered for applications such as sub-metering, machine monitoring, calibration checks at consumer locations, power measurement, data logging, and power quality analysis. It’s compatible with FTU, DTU, Bay Controllers, Multifunction Protection Relays, Merging Units, and RTU applications.
Features
- Very simple installation;
- Not affect amplitude and phase correction;
- Isolated power circuit;
- Wide operating range.
Specifications
| Device data | |
| Article number | Voltage Sensor Amplifier v1.0 |
| Description | The Voltage Sensor Amplifier is designed to allow a single voltage sensor (per phase) to interface with multiple IOMOD Meter and IOMOD FPI devices, eliminating the need for amplitude and phase correction. |
| Warranty | 2 years |
| INPUT | 3×3.25 V/√3 AC (IEC 61869-11) |
| Voltage input range | 0..10V AC |
| Voltage input impedance | 1 MΩ; < 170 pF |
| Frequency measurement range | 45..65 Hz |
| Overvoltage protection | ±20V |
| OUTPUT | 3x |
| Voltage output range | 3.25 V/√3 AC (IEC 61869-11) |
| Power supply | |
| Auxiliary power supply | 9-33VDC (full range) |
| Overvoltage protection | 35VDC (+/-5%) |
| Reverse polarity protection | Yes |
| Isolation | Power supply circuit isolated |
| Power consumption | <200mA @12 VDC |
| Operating conditions | |
| Operating temperature | -25°C … 55°C |
| Storage temperature | -40°C … 85°C |
| Humidity | max. 95 % (non condensing) |
| Protection class | IP20 |
| Dimensions and installation instructions | |
| Case height x width x depth | 119 x 17.5 x 101 mm |
| Installation type | DIN Rail mounting |
Documentation
- Online documentation about adapters
- Brochures and Manuals to download
Order
VSA v1 – Voltage Sensor Amplifier v1 (with input/output screw terminals)
VSA v1-RJ – Voltage Sensor Amplifier v1 (with input/output RJ45 connectors)
